COMP Cams

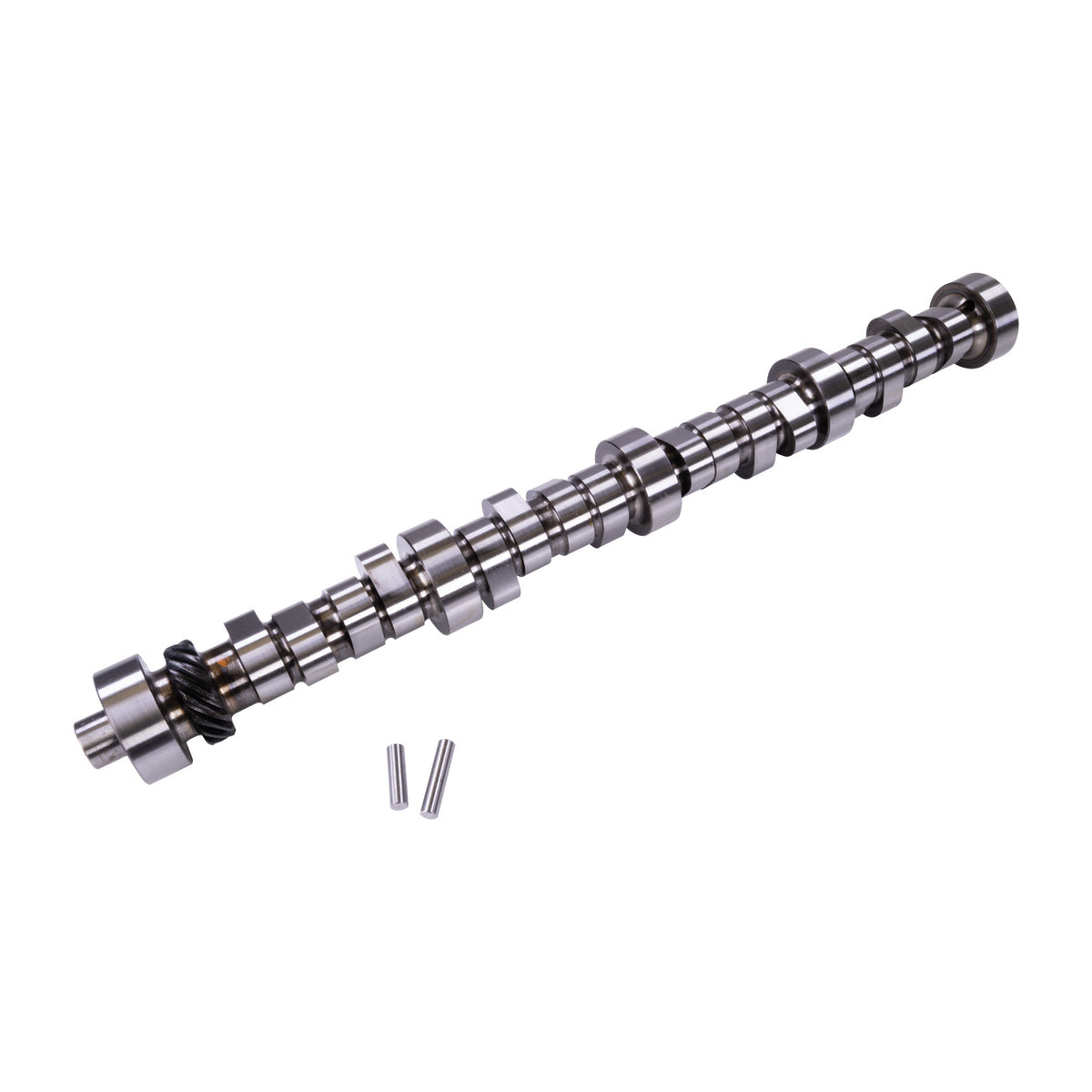

Xtreme Energy 224/230 Hydraulic Roller Ford 221-302

Xtreme Energy 224/230 Hydraulic Roller Ford 221-302

BDQQ-31-494-9

COMP Cams

Regular price $562.95 USD
Regular price $562.95 USD Sale price $562.95 USD
Sale Sold out
The COMP Cams Xtreme Energy camshaft delivers enhanced street performance for Ford Small Block engines, offering strong midrange torque and horsepower gains with a smooth yet noticeable idle and responsive throttle—ideal for mild performance upgrades. Designed for street machines, it performs best with proven combinations including the Edelbrock RPM Air-Gap intake manifold, headers, and a TCI Breakaway torque converter (2200–2400 stall) paired with a 3.73 gear ratio, producing a slightly rough idle and improved overall drivability. Featuring full-size base circles, this camshaft works seamlessly with COMP Cams Evolution hydraulic roller tappets and eliminates the need for dog bones and lifter retainers—components never intended for pre-1985 applications. This camshaft supersedes part number 31-442-8, delivering a dependable upgrade with balanced street and performance capability.
  • Features full-size base circles, works seamlessly with our Comp Cams Evolution hydraulic roller tappets.
  • Eliminates the need for dog bones and lifter retainers, which were never intended for use in pre-1985 applications.
  • Supersedes 31-442-8
  • Brand Name: COMP Cams
  • GTIN: 00036584003502
  • Advance: 4
  • Advertised Exhaust Duration: 284
  • Advertised Intake Duration: 276
  • Basic Operating RPM Range: 2000-6000
  • Cam Type: Hydraulic Roller
  • Camshaft Series: Xtreme Energy
  • Computer Controlled Compatible: No
  • Cross sell / Upsell Part Numbers: 89311-16, 1431-16, 431M, 26986-16
  • Direct Injection: No
  • Engine Platform: Ford Small Block
  • Exhaust Duration at .050 inch Lift: 230
  • Exhaust Lobe Lift: 0.318
  • Exhaust Valve Lash: Hyd
  • Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.509
  • Factory Rocker Ratio: 1.6
  • Firing Order: FS/FF
  • Fuel Management Strategy Compatible: No
  • Intake Centerline: 106
  • Intake Duration at .050 Inch Lift: 224
  • Intake Lobe Lift: 0.321
  • Intake Valve Lash: Hyd
  • Intake Valve Lift with Factory Rocker Arm Ratio: 0.514
  • Lifter Type: Roller Tappet
  • Lobe Separation: 110
  • Material: Billet Steel
  • VVT Compatible: No
  • Valve Springs Required: Yes
  • Country of Origin: United States
  • Emissions : Racing or Pre-Emissions Use Only
  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 24.3 x 2.9 x 2.7 inches
  • Weight: 10.95 POUNDS
