COMP Cams

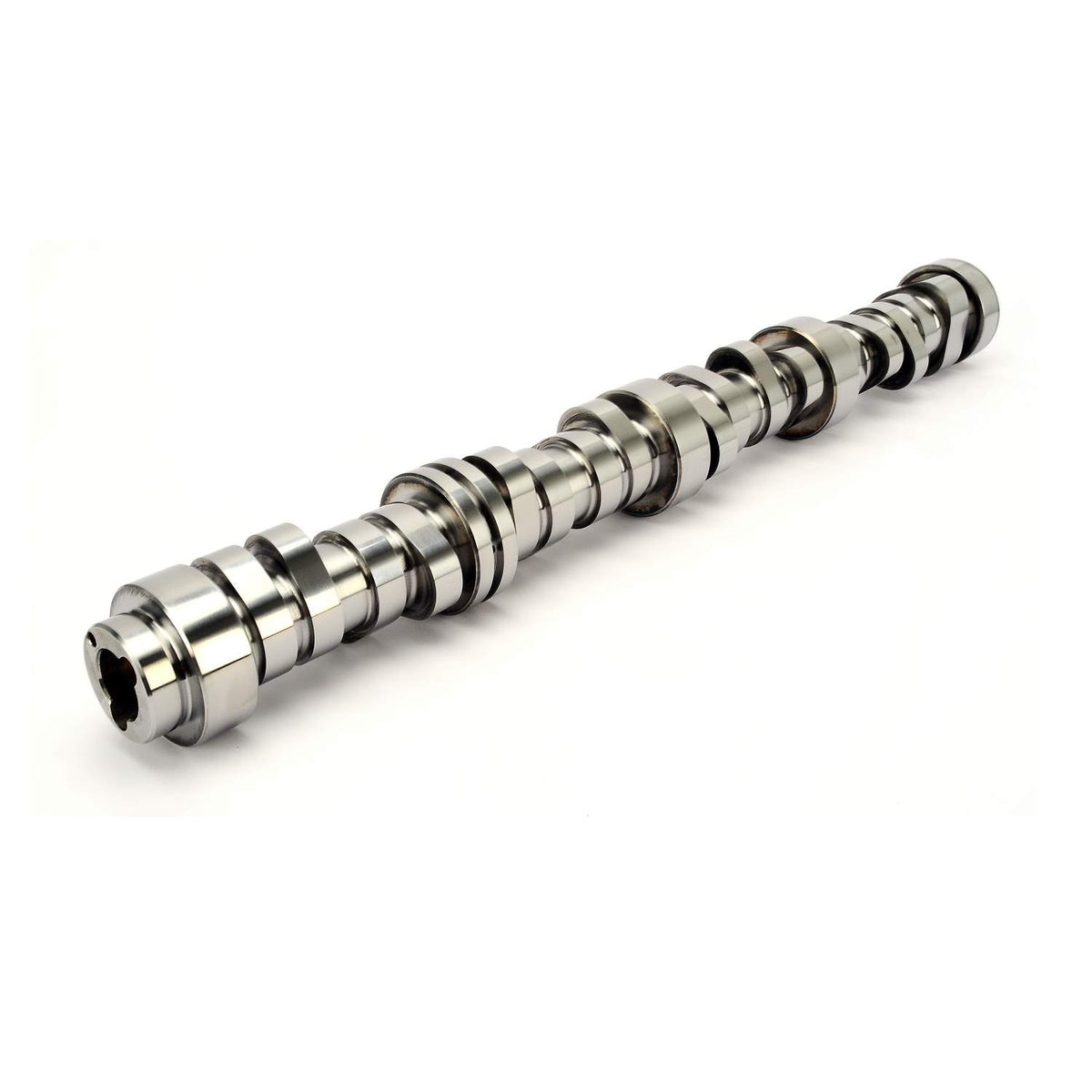

XFI AFM 216/228 D 214/226 N Hydraulic Roller Cam For GM LT1 GEN V

XFI AFM 216/228 D 214/226 N Hydraulic Roller Cam For GM LT1 GEN V

BDQQ-624-512-13

COMP Cams

$603.95 USD
$603.95 USD $603.95 USD
Sale Sold out
Increase TQ and HP Throughout RPM Range with XFIâ„¢ AFM Cams for GM Gen V. Revolutionary GM Gen V Camshafts from COMP Cams are designed to work with the direct injection, VVT (Variable Valve Timing) and AFM (Active Fuel Management) lifters featured in GM's Gen V (LT1/L83/L86) V8 engine. This means that these XFIâ„¢ Series hydraulic Roller cams allow users to leverage the OE Technology for performance gains. Gen V Cams feature four different lobe profiles to both create AFM compatibility and optimize intake and exhaust valve opening/closing events. COMP Cams GM Gen V Camshafts increase torque and horsepower throughout the entire RPM range, while providing excellent responsiveness and mid-range power over stock for across-the-board gains. These cams must have the COMP Phaser Limiter Kit (Part #5456), which limits the range of Camshaft movement from 62 to 22 crank degrees thus requiring PCM tuning. COMP Cams GM Gen V Camshafts are available for stock to highly modified Applications. Vehicle Specific
  • Cadillac: CTS 16 - 19 6.2 L Engine, Cadillac: Escalade 15 - 19 6.2 L Engine, Cadillac: Escalade ESV 15 - 19 6.2 L Engine, Chevrolet: Camaro 16 - 19 6.2 L Engine, Chevrolet: Cheyenne 17 - 17 6.2 L Engine
  • Chevrolet: Corvette 14 - 19 6.2 L Engine, Chevrolet: Silverado 1500 14 - 18 5.3 L Engine, Chevrolet: Silverado 1500 14 - 18 6.2 L Engine, Chevrolet: Silverado 1500 LD 19 - 19 5.3 L Engine
  • Chevrolet: Silverado 2500 17 - 17 5.3 L Engine, Chevrolet: Suburban 15 - 19 5.3 L Engine, Chevrolet: Suburban 19 - 19 6.2 L Engine, Chevrolet: Tahoe 15 - 19 5.3 L Engine
  • Chevrolet: Tahoe 18 - 19 6.2 L Engine, GMC: Sierra 17 - 17 5.3 L Engine, GMC: Sierra 1500 14 - 18 5.3 L Engine, GMC: Sierra 1500 14 - 18 6.2 L Engine, GMC: Sierra 1500 Limited 19 - 19 5.3 L Engine
  • GMC: Yukon 15 - 19 5.3 L Engine, GMC: Yukon 15 - 19 6.2 L Engine, GMC: Yukon XL 15 - 18 5.3 L Engine, GMC: Yukon XL 15 - 18 6.2 L Engine
  • Brand Name: COMP Cams
  • GTIN: 00036584267027
  • Advertised Exhaust Duration: 274
  • Advertised Intake Duration: 262
  • Amazon ASIN: B00N6LTJUW
  • Assembly Lubricant Included: No
  • Basic Operating RPM Range: 1,600-6,750
  • C.A.R.B. E.O. Number: N/A
  • C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
  • C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
  • C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
  • C.A.R.B. Exempt for On-Road Vehicles?: No
  • C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
  • C.A.R.B. Exemption Reason: N/A
  • Cam Type: Hydraulic Roller
  • Camshaft Material: Billet Steel
  • Camshaft Series: XFI AFM
  • Engine Family: GM LT1 GEN V w/ VVT and w/ AFM 8 Cylinder (2014+)
  • Exhaust Duration at .050 inch Lift: 226
  • Exhaust Valve Lift: 0.529
  • Grind Number: 266PIIHR16
  • Intake Duration at .050 Inch Lift: 214
  • Intake Valve Lift: 0.572
  • Lifter Type: Hydraulic Roller
  • Lifters Included: No
  • Lobe Separation: 116
  • Usage: Street/Performance
  • Valve Springs Required: Yes
  • Country of Origin: United States
  • Emissions : EPA Eligible
  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 24.5 x 3 x 2.75 inches
  • Weight: 11.2 POUNDS
