COMP Cams

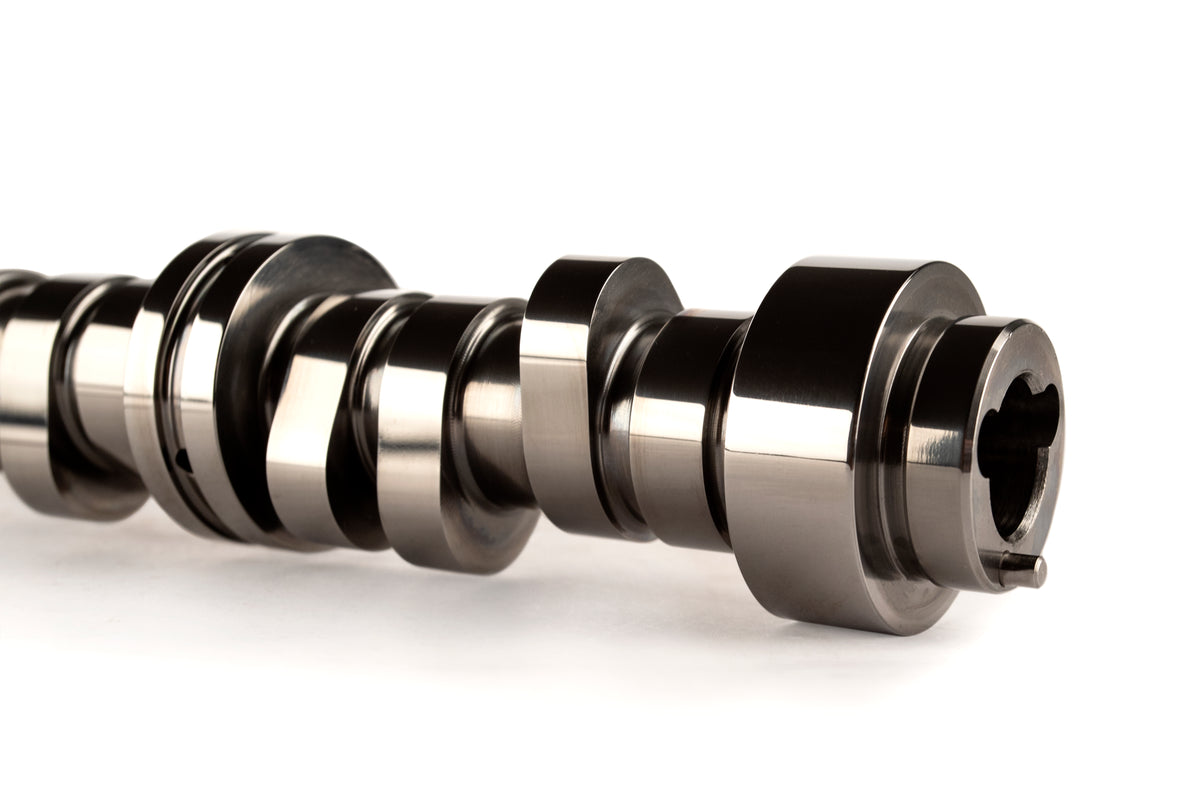

XFI AFM 216/228 D 214/226 N Hydraulic Roller Cam For GM LS GEN IV

XFI AFM 216/228 D 214/226 N Hydraulic Roller Cam For GM LS GEN IV

BDQQ-689-421-13

COMP Cams

$682.95 USD
$682.95 USD $682.95 USD
Sale Sold out
XFI AFM 216/228 D, 214/226 N Hydraulic Roller Cam Vehicle Specific
  • Cadillac: Escalade 10 - 13 6 L Engine, Cadillac: Escalade 08 - 16 6.2 L Engine, Cadillac: Escalade ESV 08 - 15 6.2 L Engine, Cadillac: Escalade EXT 08 - 13 6.2 L Engine
  • Chevrolet: Avalanche 08 - 13 5.3 L Engine, Chevrolet: Camaro 10 - 15 6.2 L Engine, Chevrolet: Colorado 10 - 12 5.3 L Engine, Chevrolet: Express 1500 08 - 14 5.3 L Engine
  • Chevrolet: Silverado 1500 08 - 13 5.3 L Engine, Chevrolet: Silverado 1500 10 - 13 6 L Engine, Chevrolet: Silverado 1500 09 - 13 6.2 L Engine, Chevrolet: Suburban 1500 08 - 14 5.3 L Engine
  • Chevrolet: Tahoe 09 - 11 5.3 L Engine, Chevrolet: Tahoe 10 - 13 6 L Engine, Chevrolet: Tahoe 08 - 09 6.2 L Engine, GMC: Canyon 10 - 12 5.3 L Engine, GMC: Savana 1500 08 - 14 5.3 L Engine
  • GMC: Sierra 08 - 08 6.2 L Engine, GMC: Sierra 1500 08 - 13 5.3 L Engine, GMC: Sierra 1500 10 - 13 6 L Engine, GMC: Sierra 1500 08 - 13 6.2 L Engine, GMC: Yukon 09 - 10 5.3 L Engine
  • GMC: Yukon 10 - 13 6 L Engine, GMC: Yukon 08 - 14 6.2 L Engine, GMC: Yukon XL 1500 08 - 14 5.3 L Engine, GMC: Yukon XL 1500 08 - 14 6.2 L Engine, Hummer: H2 08 - 09 6.2 L Engine
  • Hummer: H3 10 - 10 5.3 L Engine, Hummer: H3T 10 - 10 5.3 L Engine
  • Brand Name: COMP Cams
  • GTIN: 00036584237907
  • Advertised Exhaust Duration Deactivation Cylinders: 290
  • Advertised Exhaust Duration Non-Deactivation Cylinders: 278
  • Advertised Intake Duration Deactivation Cylinders: 278
  • Advertised Intake Duration Non-Deactivation Cylinders: 266
  • Amazon ASIN: B0066SUNFW
  • Assembly Lubricant Included: No
  • C.A.R.B. E.O.: N/A
  • C.A.R.B. E.O. Number: N/A
  • C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
  • C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
  • C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
  • C.A.R.B. Exempt for On-Road Vehicles?: No
  • C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
  • C.A.R.B. Exemption Reason: N/A
  • Camshaft Gear Attachment: 1-Bolt
  • Camshaft Material: Billet Steel
  • Camshaft Series: XFI AFM
  • Engine Family: GM LS GEN IV Single Bolt w/ VVT (12606358) and w/ AFM 8 Cylinder (2008-2015)
  • Exhaust Duration at .050 inch Lift Deactivation Cylinders: 228
  • Exhaust Duration at .050 inch Lift Non-Deactivation Cylinders: 226
  • Exhaust Valve Lift Deactivation Cylinders: 0.5
  • Exhaust Valve Lift Non-Deactivation Cylinders: 0.5
  • Grind Number: 266PIIHR14
  • Intake Duration at .050 Inch Lift Deactivation Cylinders: 216
  • Intake Duration at .050 Inch Lift Non-Deactivation Cylinders: 214
  • Intake Valve Lift Deactivation Cylinders: 0.5
  • Intake Valve Lift Non-Deactivation Cylinders: 0.5
  • Lifters Included: No
  • Lobe Separation: 114
  • Usage: Street/Performance
  • Valve Springs Required: Yes
  • Country of Origin: United States
  • Emissions : EPA Eligible
  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 24.5 x 3 x 2.75 inches
  • Weight: 10 POUNDS
