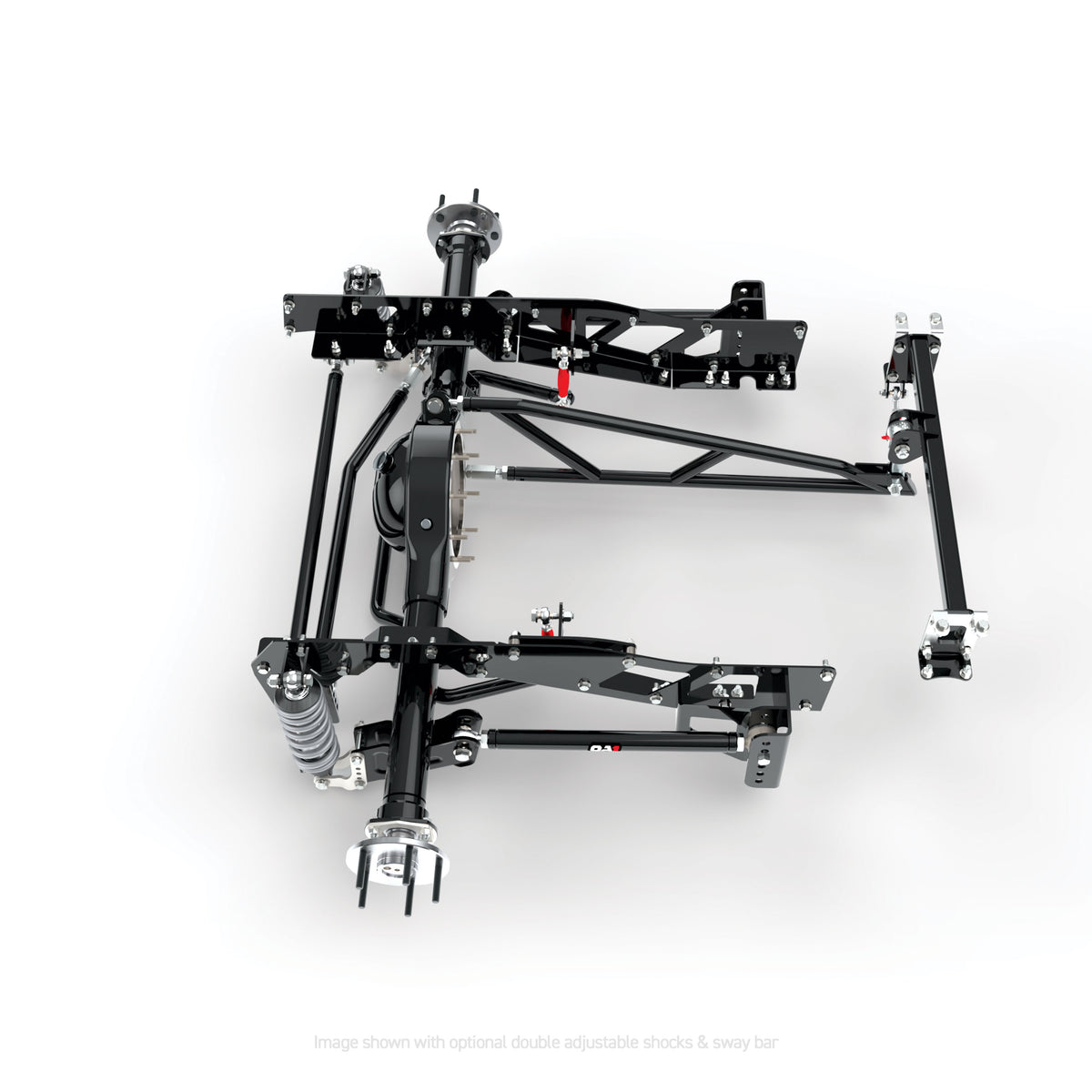

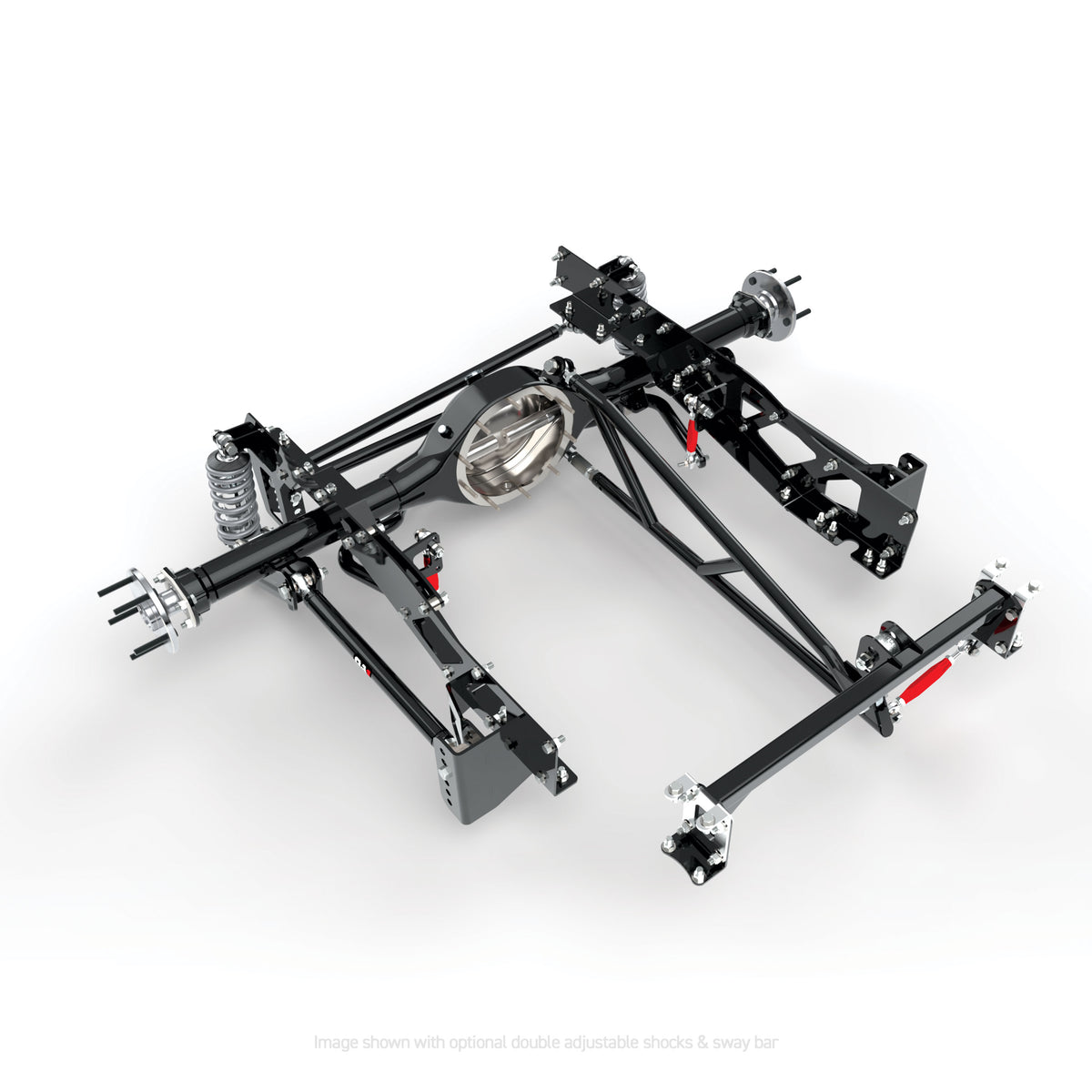

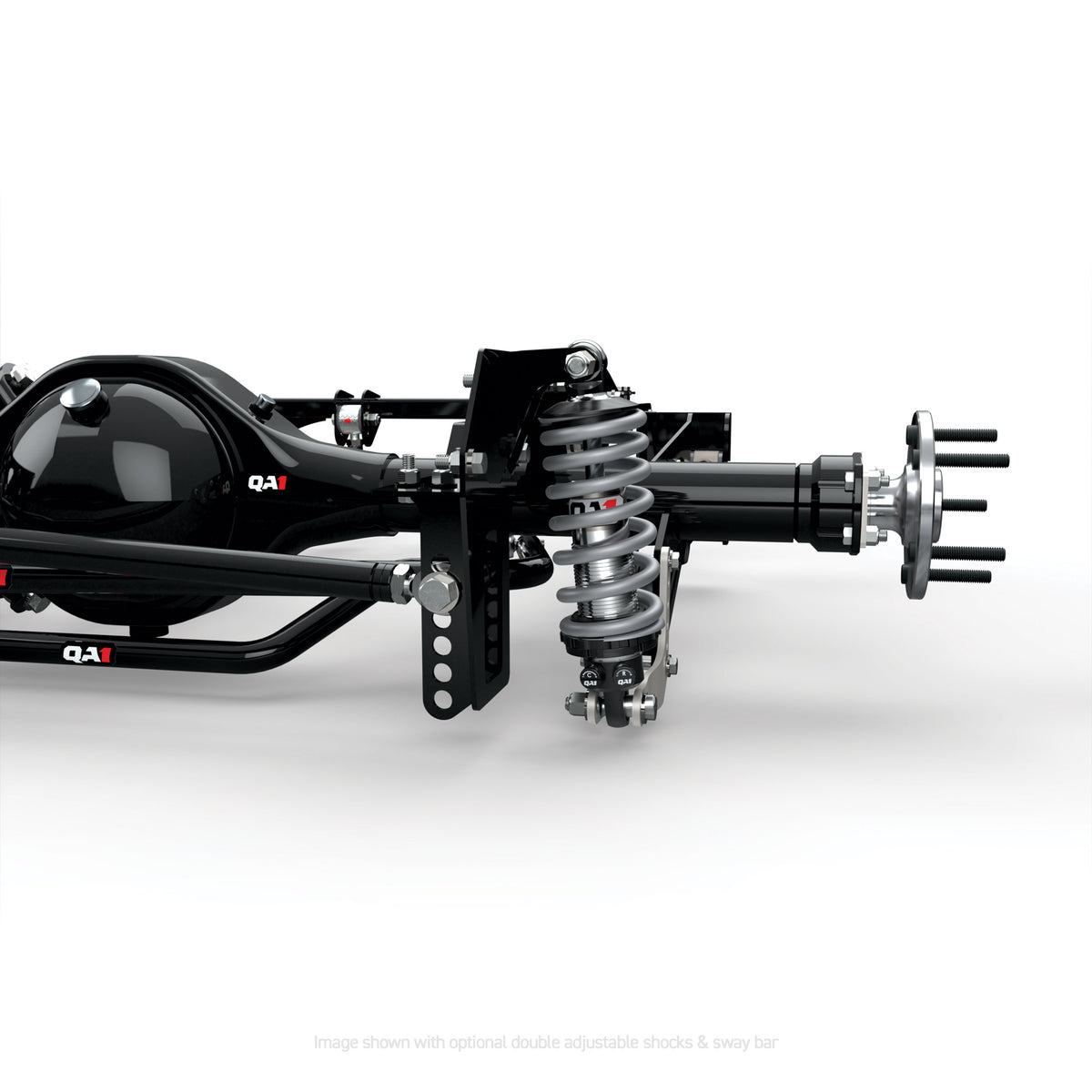

QA1 Suspension System R132-250N

Upgrade the rear suspension of your 1973-1987 Chevrolet C10 Squarebody with a complete QA1 Rear Suspension System, paired with a narrowed 9-inch housing and 31-spline axles. This system combines adjustable coil-over performance with more flexibility for modern wheel and tire fitment. The narrowed housing is designed to complement mini-tubbed Squarebody trucks while opening up more options for wheel fitment. The result is greater freedom to choose from readily available wheels and create the stance and look you want. MORE WHEEL OPTIONS, BETTER FITMENT The included 9-inch housing features a 57-1/8" wheel mounting surface width, 6-1/2" narrower overall than the factory 63-5/8" width. The narrowed design works with mini-tubs to give you greater flexibility in wheel width, backspacing and offset, making it easier to fit wider wheels and tires under your Squarebody. The housing includes 31-spline axles, Big Ford New Style Torino housing ends with a 2.5" axle offset and dual 5x4.75" and 5x5" bolt patterns for compatibility with a wide range of brake and wheel combinations. MODERN COIL-OVER PERFORMANCE Replace the factory rear suspension with a performance-focused coil-over system designed to improve suspension control and give your Squarebody a more responsive, modern driving experience. DIAL IN YOUR RIDE QA1 single-adjustable coil-overs provide 18 positions of simultaneous compression and rebound adjustment. Turn the knob softer for comfortable street driving or increase the valving for more responsive handling. The included 250 lb/in. springs provide a firmer spring rate for performance-focused trucks and builds that require additional spring support. COMPLETE SYSTEM WITH 9-INCH HOUSING Get the suspension and rear-end components you need in one matched package. The system combines QA1 rear suspension components, single-adjustable coil-overs, 250 lb/in. springs, a narrowed 9-inch housing and 31-spline axles to simplify your build.

• Fit wider wheels and tires: Narrowed 9-inch housing provides an additional 3-1/4" per side for mini-tub applications.
• Modernize your Squarebody suspension: Coil-over suspension provides greater suspension control and a more performance-focused driving experience.
• Tune the ride to your preference: Single-adjustable coil-overs provide 18 positions of adjustment for comfortable cruising or more responsive handling.
• Build around your preferred wheels and brakes: Dual 5x4.75" and 5x5" bolt patterns and Big Ford New Style Torino housing ends provide compatibility with a wide range of combinations.
• Start with a complete, matched system: Suspension components, coil-overs, narrowed 9-inch housing and 31-spline axles are packaged together to simplify your build.
• Performance you can count on: QA1 shocks are 100% dyno tested and serialized.
