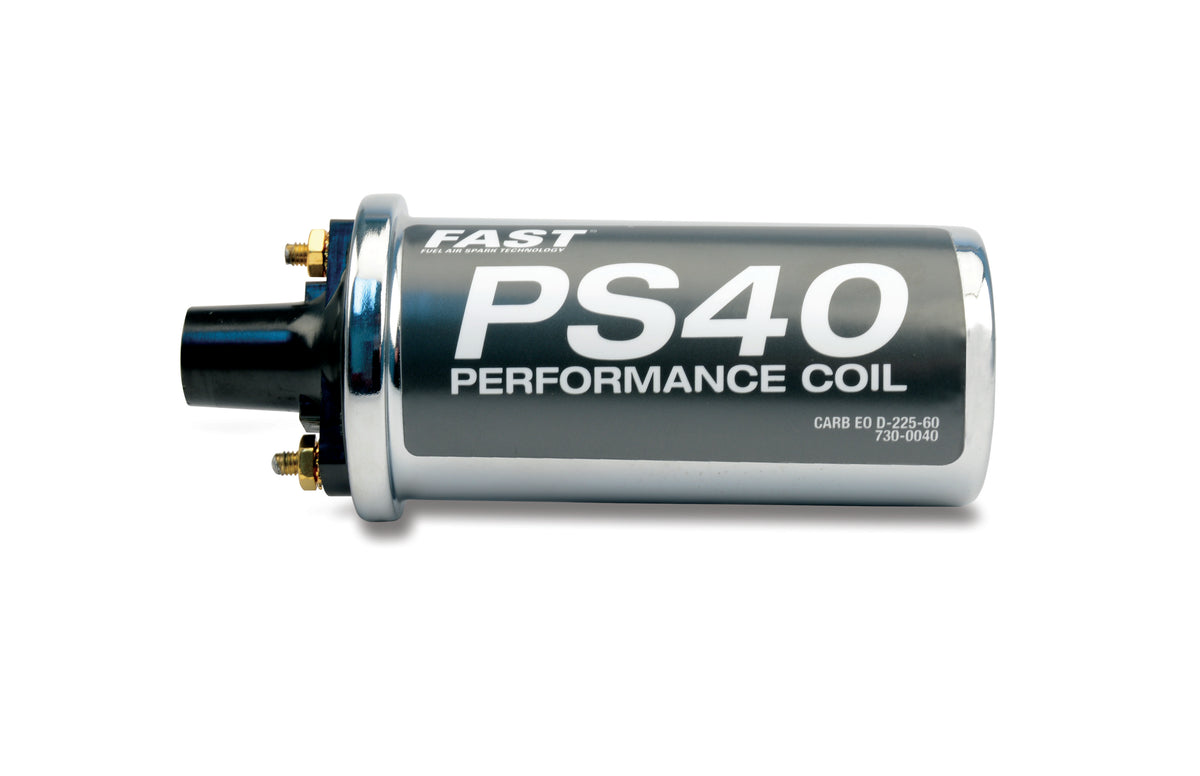

PS40 Premium Street Coil
PS40 Premium Street Coil
Regular price
$61.95 USD
Regular price
$61.95 USD
Sale price
$61.95 USD
Unit price
per
Couldn't load pickup availability
The PS20 and PS40 Coils are designed to enhance the output of factory ignition systems. They fit in place of most OEM canister coils, and thanks to their lower resistance and optimized turns ratio, will produce a higher output spark when used with breaker points, amplified ignitions or with the FAST XR-I Points Replacement system. These coils will reliably deliver a high output spark through 6,500 RPM on mild street performance applications and are oil filled to keep the windings cool. Both coils are supplied with a ballast resistor which is required if you plan to fire up your original breaker point style ignition system.
- PS20 Canister Style coil
- Black
- 20-50% higher energy at spark plug than typical stockcoils
- Oil filled for maximum cooling of internal windings and high reliability
- Windings optimized with computer aided design for maximum spark gap current and high available voltage
- Alkyd coil towers eliminate failure from flash over and carbon tracking.
- 50 state legal CARB E.O. D-225-60
Attributes
Attributes
- GTIN: 00021174033427
- Brand Name: FAST
- Ballast Resistor Included: Yes
- Mounting Bracket Included: No
- Turns Ratio: 60:1
- Terminal Quantity: 2
- Spark Duration: 385 uS
- Secondary Resistance: 5.2K ohms
- Secondary Inductance: 26 H
- Quantity: Sold Individually
- Primary Resistance: 1.4 ohms
- Primary Inductance: 7.5 mH
- Peak Current: 145 mA
- Oil Filled: Yes
- Mounting Position: Upright
- Mount Type: Bracket
- Meets or Exceeds OEM Specs: Yes
- Maximum Voltage: 46,000 V
- Leakage Inductance: 1.3 mH
- Height: 5.75
- Diameter: 2.125
- Coil Wire Terminal Quantity: 1
- Coil Wire Included: No
- Coil Wire Attachment: Female/Socket
- Coil Style: Canister
- Coil Shape: Round
- Coil Internal Construction: Oil-Filled
- Coil Color: Nickel Plated
- Weight: 1.75 lbs
- C.A.R.B. Exempt?: Yes
- C.A.R.B. EO Number: D-225-60
Extended Information
Extended Information
- Country of Origin: United States
- Emissions : Released
- Life Cycle Status: Available To Order
Packing Information
Packing Information
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 2.75 x 3.25 x 8.5 inches
- Weight: 1.74 lb
