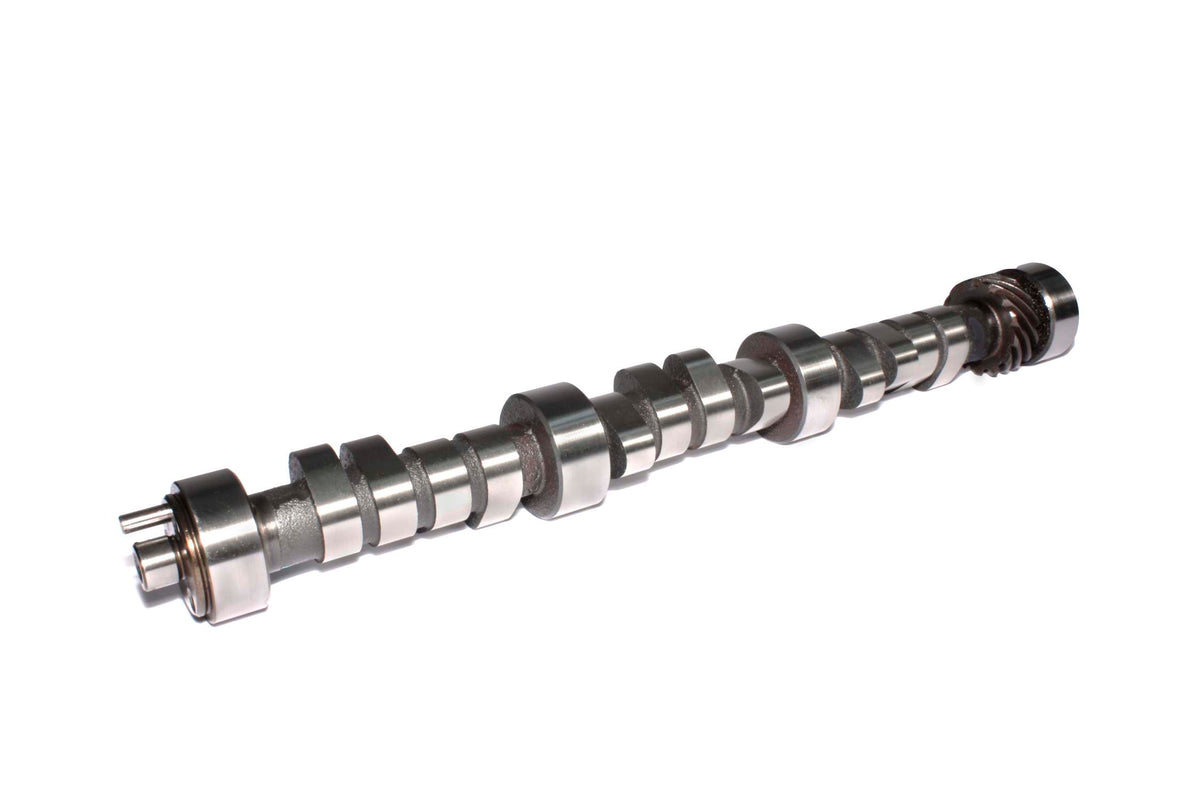

Magnum 224/224 Hydraulic Roller Cam For Chevrolet 262/4.3L V6
Magnum 224/224 Hydraulic Roller Cam For Chevrolet 262/4.3L V6
Regular price
$577.95 USD
Regular price
$577.95 USD
Sale price
$577.95 USD
Unit price
per
Couldn't load pickup availability
V6 Balance Shaft-Equipped Engines. Limited High Performance with Rough Idle - Needs Intake, Headers, 2500+ Stall and 3.73 to 4.10 Gears. Adjustable Valve Train Required - For Carbureted Applications Balance shaft equipped 4.3L engines were introduced in '92 but GM continued to produce the previous version until '94. Non-balance shaft 4.3L's (' 85-'94) shared their timing cover with the small block Chevy V8 engine. The balance shaft 4.3L's timing cover is noticeably taller than the non-balance shaft version.
Attributes
Attributes
- Brand Name: COMP Cams
- GTIN: 00036584063377
- Advertised Exhaust Duration: 280
- Advertised Intake Duration: 280
- Amazon ASIN: B001R9BSZ4
- Assembly Lubricant Included: No
- Basic Operating RPM Range: 2,000-5,500
- C.A.R.B. E.O. Number: N/A
- C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for On-Road Vehicles?: No
- C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
- C.A.R.B. Exemption Reason: N/A
- Cam Type: Hydraulic Roller
- Camshaft Material: Austempered Ductile Iron
- Camshaft Series: Magnum
- Engine Family: Chevrolet 4.3L 262 c.i. 90 Degree w/ Balance Shaft (1992+)
- Exhaust Duration at .050 inch Lift: 224
- Exhaust Valve Lift: 0.525
- Grind Number: 280HR
- Intake Duration at .050 Inch Lift: 224
- Intake Valve Lift: 0.525
- Lifter Type: Hydraulic Roller
- Lifters Included: No
- Lobe Separation: 110
- Valve Springs Required: Yes
Extended Information
Extended Information
- Country of Origin: United States
- Emissions : EPA Eligible
Packing Information
Packing Information
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 24.5 x 3 x 2.75 inches
- Weight: 7.1 POUNDS
