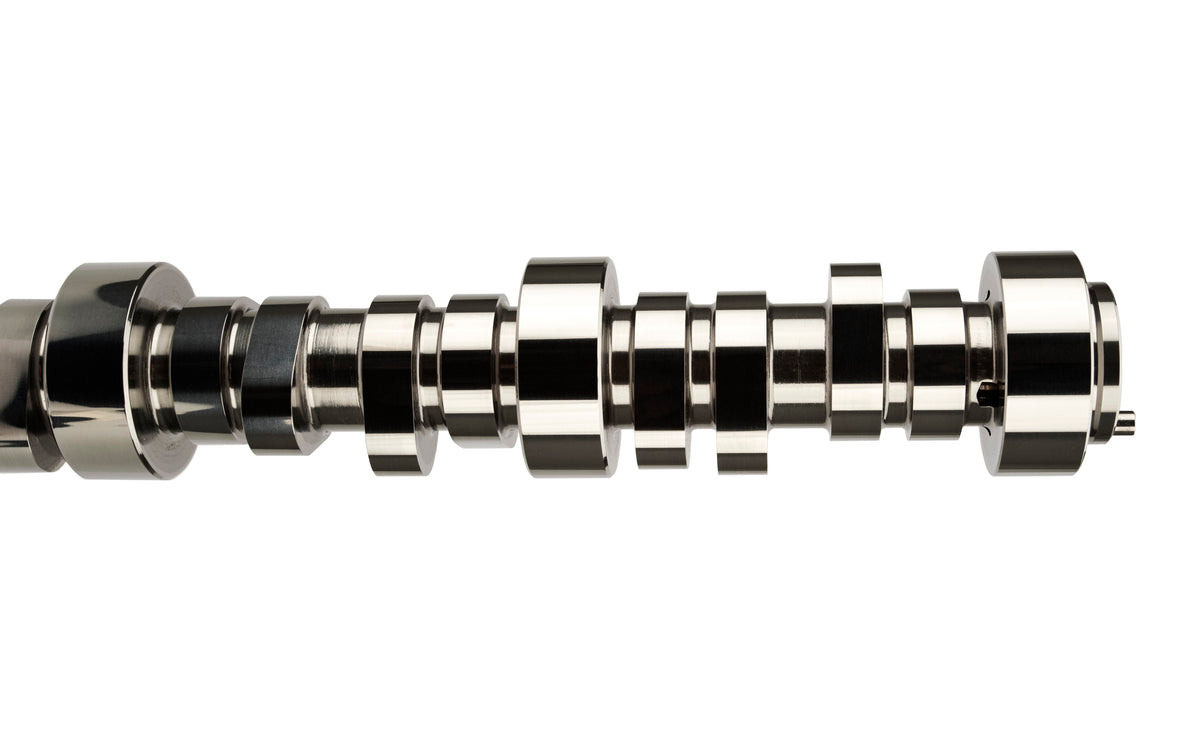

LSR Cathedral Port 227/235 Hydraulic Roller Cam For GM LS GEN III/IV
LSR Cathedral Port 227/235 Hydraulic Roller Cam For GM LS GEN III/IV
Regular price
$404.95 USD
Regular price
$404.95 USD
Sale price
$404.95 USD
Unit price
per
Couldn't load pickup availability
Hydraulic Roller: Good street/strip Camshaft with wide range. Must have substantial airflow upgrades, inlet and exhaust.
Vehicle Specific
- Fits 4.8, 5.3, 5.7, 6.0, 6.2 and 7.0 Liter LS1, LS2, LS3, LS4, LS6, LS7 plus SUV and Truck Engines (Grinds are specific to displacement and cylinder head design)
Attributes
Attributes
- Brand Name: COMP Cams
- GTIN: 00036584195221
- Advertised Exhaust Duration: 285
- Advertised Intake Duration: 277
- Amazon ASIN: B001P22TOM
- Assembly Lubricant Included: No
- Basic Operating RPM Range: 1,900-7,000
- C.A.R.B. E.O. Number: N/A
- C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for On-Road Vehicles?: No
- C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
- C.A.R.B. Exemption Reason: N/A
- Cam Type: Hydraulic Roller
- Camshaft Gear Attachment: 3-Bolt
- Camshaft Material: Billet Steel
- Camshaft Series: LSR Cathedral Port Small Displacement/Max Torque
- Engine Family: GM LS GEN III/IV 3-Bolt 8 Cylinder (1997-2015)
- Exhaust Duration at .050 inch Lift: 235
- Exhaust Valve Lift: 0.621
- Grind Number: 277Lr HR-13
- Intake Duration at .050 Inch Lift: 227
- Intake Valve Lift: 0.614
- Lifter Type: Hydraulic Roller
- Lifters Included: No
- Lobe Separation: 113
- Valve Springs Required: Yes
Extended Information
Extended Information
- Country of Origin: United States
- Emissions : EPA Eligible
Packing Information
Packing Information
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 23.3 x 2.91 x 2.59 inches
- Weight: 9.8 POUNDS
