COMP Cams

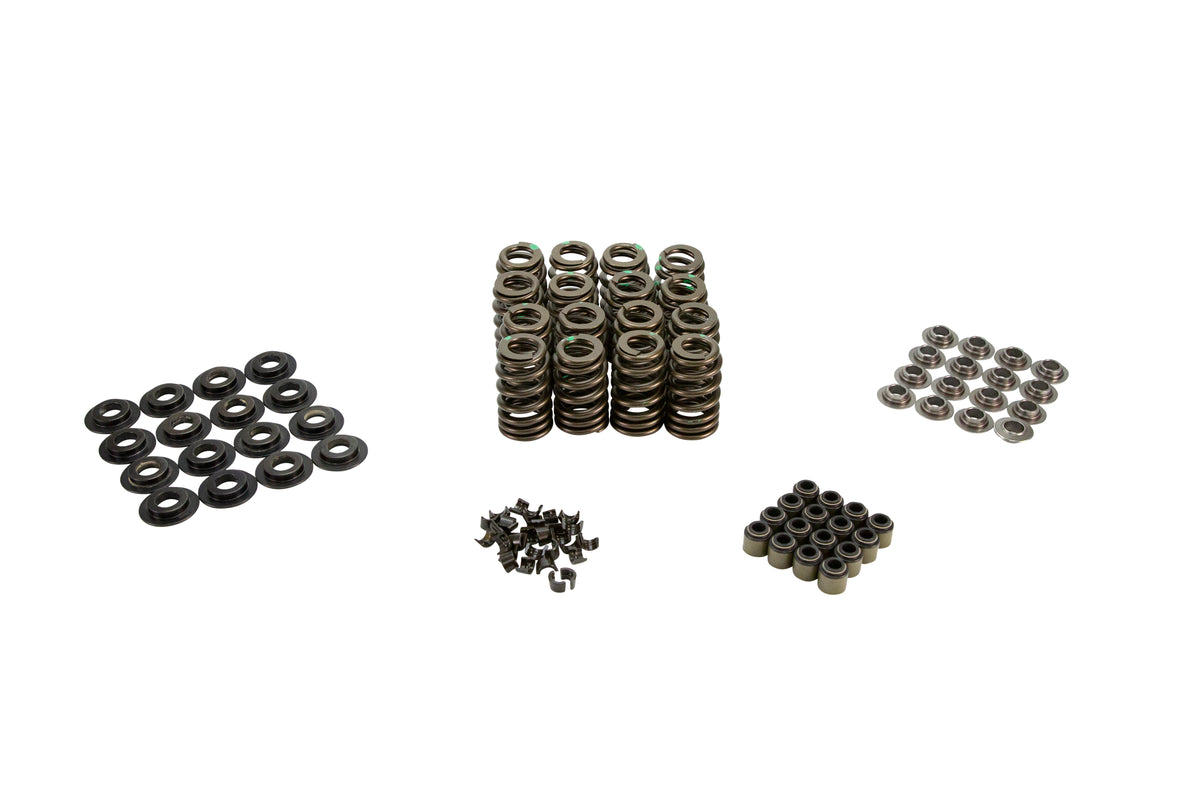

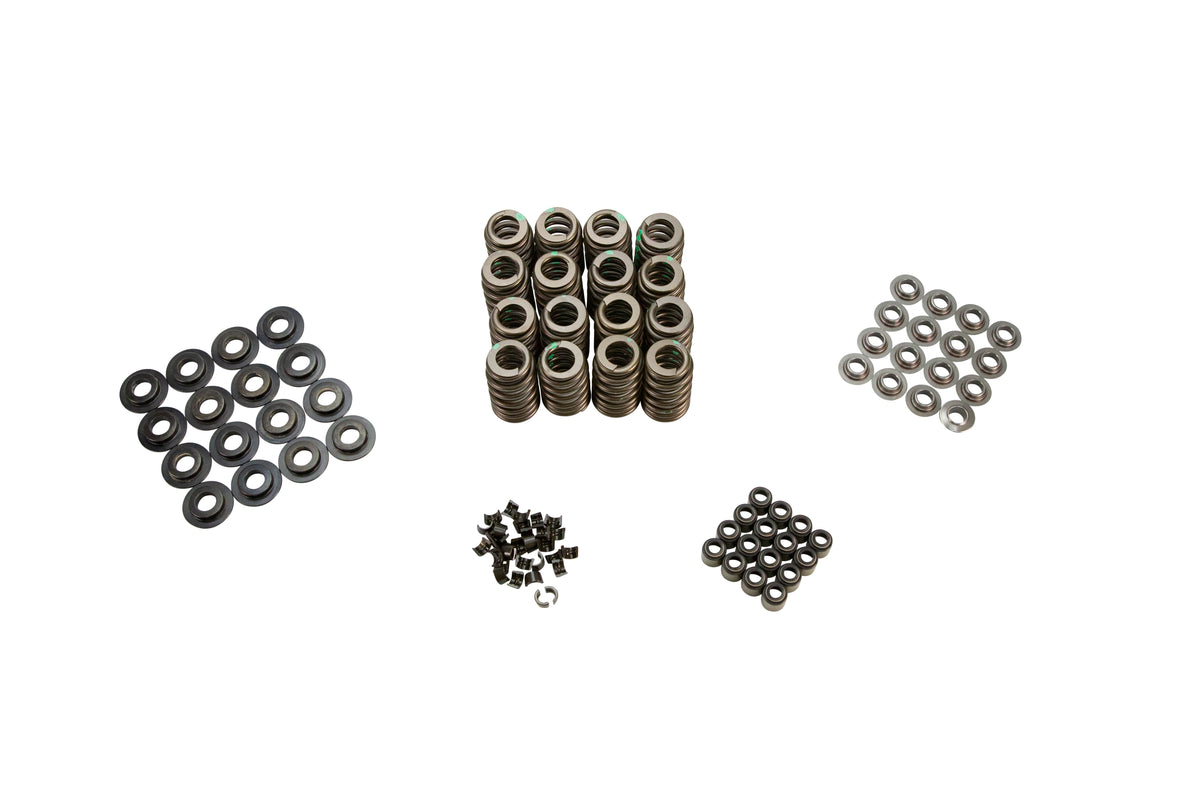

LS6+ Beehive Valve Spring Kit W/ Tool Steel Retainers; 0.580" Max Lift

LS6+ Beehive Valve Spring Kit W/ Tool Steel Retainers; 0.580" Max Lift

BDQQ-26906TS-KIT

COMP Cams

$581.95 USD
$581.95 USD $581.95 USD
Sale Sold out
The COMP Cams 0.575" Lift Beehive LS6+ Valve Spring Kit Features: <ul> <li>4% higher load and .030" higher lift capacity than Blue GM LS6 Springs</li> <li>Includes springs, Tool Steel retainers, valve locks, Seals, and spring seats</li> </ul> Vehicle Specific
  • Gm LS engines including truck engines, excluding LS7.
  • Brand Name: COMP Cams
  • GTIN: 00036584394228
  • Coil Bind Height: 1.181
  • Compatible Shims: 4753
  • Engine Fitment: GM LS Cathedral and Rectangle Port Applications
  • Includes Locks: Yes
  • Includes Retainers: Yes
  • Includes Spring Seats: Yes
  • Includes Valve Seals: Yes
  • Locator Inner Diameter: 0.510
  • Locator Outer Diameter: 1.300
  • Locator Thickness: 0.0600
  • Max Lift: 0.580
  • Retainer Material: Tool Steel
  • Seat Height: 1.800
  • Seat Pressure: 92
  • Spring Bottom Inside Diameter: 0.860
  • Spring Bottom Outside Diameter: 1.282
  • Spring Top Inside Diameter: 0.655
  • Spring Top Outside Diameter: 1.077
  • Valve Seal Outer Diameter: 0.600
  • Valve Seal Type: Steel Jacketed Viton
  • Valve Spring Type: Beehive
  • Country of Origin: United States
  • Emissions : CARB Eligible
  • Quantity of Each: 1
  • Package UOM: KT
  • Dimension: 13.5 x 3.75 x 3 inches
  • Weight: 3.07 POUNDS
View full details
