COMP Cams

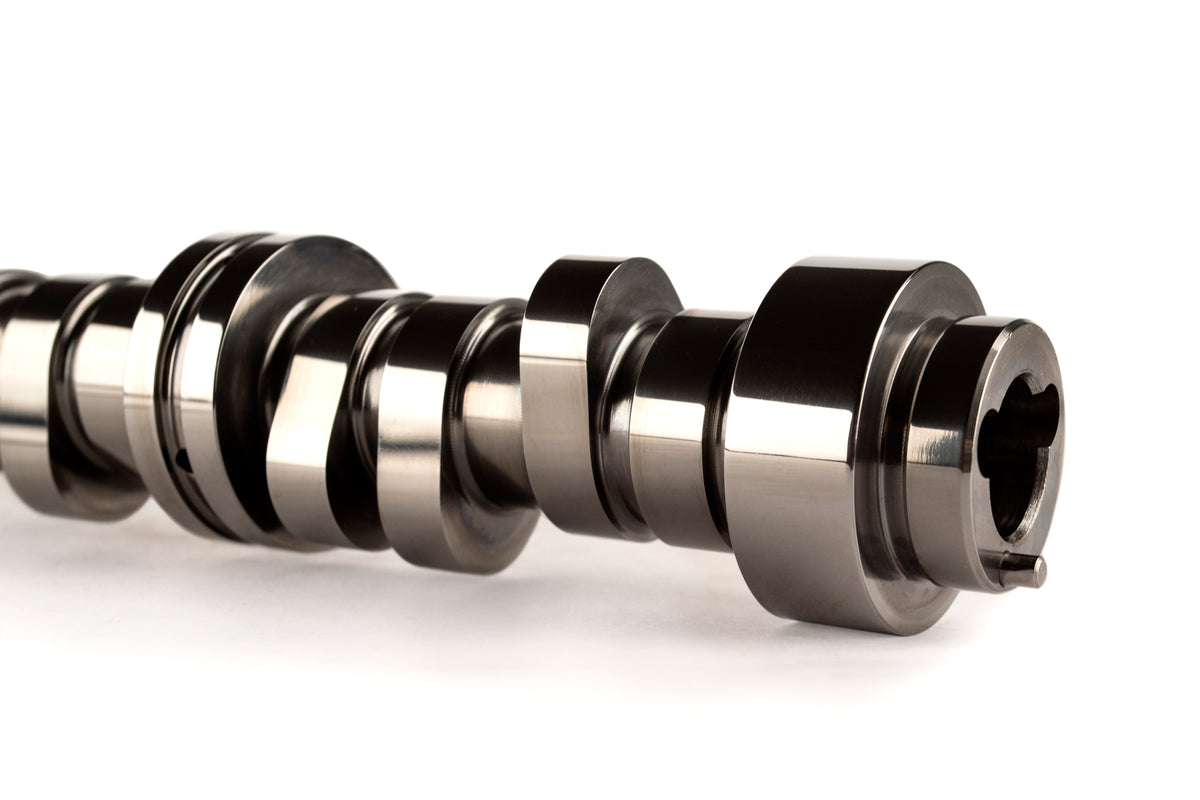

FSL AFM 212/224 D 210/222 N Hydraulic Roller Cam For GM LS GEN IV

FSL AFM 212/224 D 210/222 N Hydraulic Roller Cam For GM LS GEN IV

BDQQ-689-201-13

COMP Cams

$682.95 USD
$682.95 USD $682.95 USD
Sale Sold out
50 State Legal grind for GM L99/LS3 Gen IV Single Bolt with AFM and VVT. Works with stock components and tune, can gain 47+ HP increase in peak power.
  • Brand Name: COMP Cams
  • GTIN: 00036584388944
  • Advertised Exhaust Duration Deactivation Cylinders: 273
  • Advertised Exhaust Duration Non-Deactivation Cylinders: 264
  • Advertised Intake Duration Deactivation Cylinders: 286
  • Advertised Intake Duration Non-Deactivation Cylinders: 274
  • Amazon ASIN: N/A
  • Assembly Lubricant Included: No
  • Basic Operating RPM Range: 1700-6900
  • C.A.R.B. E.O. Number: D-279-12
  • C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
  • C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
  • C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
  • C.A.R.B. Exempt for On-Road Vehicles?: Yes
  • C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
  • C.A.R.B. Exemption Reason: C.A.R.B. EO Issued
  • Cam Type: Hydraulic Roller
  • Camshaft Gear Attachment: Single-Bolt
  • Camshaft Material: Billet Steel
  • Camshaft Series: FSL
  • Engine Family: GM GEN IV LS Single-Bolt w/ VVT and AFM 8 Cylinder (2007-2015)
  • Exhaust Duration at .050 inch Lift Deactivation Cylinders: 224
  • Exhaust Duration at .050 inch Lift Non-Deactivation Cylinders: 222
  • Exhaust Valve Lift Deactivation Cylinders: 0.541
  • Exhaust Valve Lift Non-Deactivation Cylinders: 0.541
  • Grind Number: L99E264
  • Intake Duration at .050 Inch Lift Deactivation Cylinders: 212
  • Intake Duration at .050 Inch Lift Non-Deactivation Cylinders: 210
  • Intake Valve Lift Deactivation Cylinders: 0.541
  • Intake Valve Lift Non-Deactivation Cylinders: 0.541
  • Lifter Type: Hydraulic Roller
  • Lifters Included: No
  • Lobe Separation: 116
  • Recommended Cam Install Kit: 5623
  • VVT Limiter Required?: No
  • Valve Springs Required: 26906
  • Country of Origin: United States
  • Emissions : CARB Eligible
  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 24.5 x 2.75 x 3 inches
  • Weight: 11.1 POUNDS
