FAST

E92 Performance Coil

DXKP-308250

$102.95 USD

~~$102.95 USD~~ $102.95 USD

Sale Sold out

Product variants

Quantity

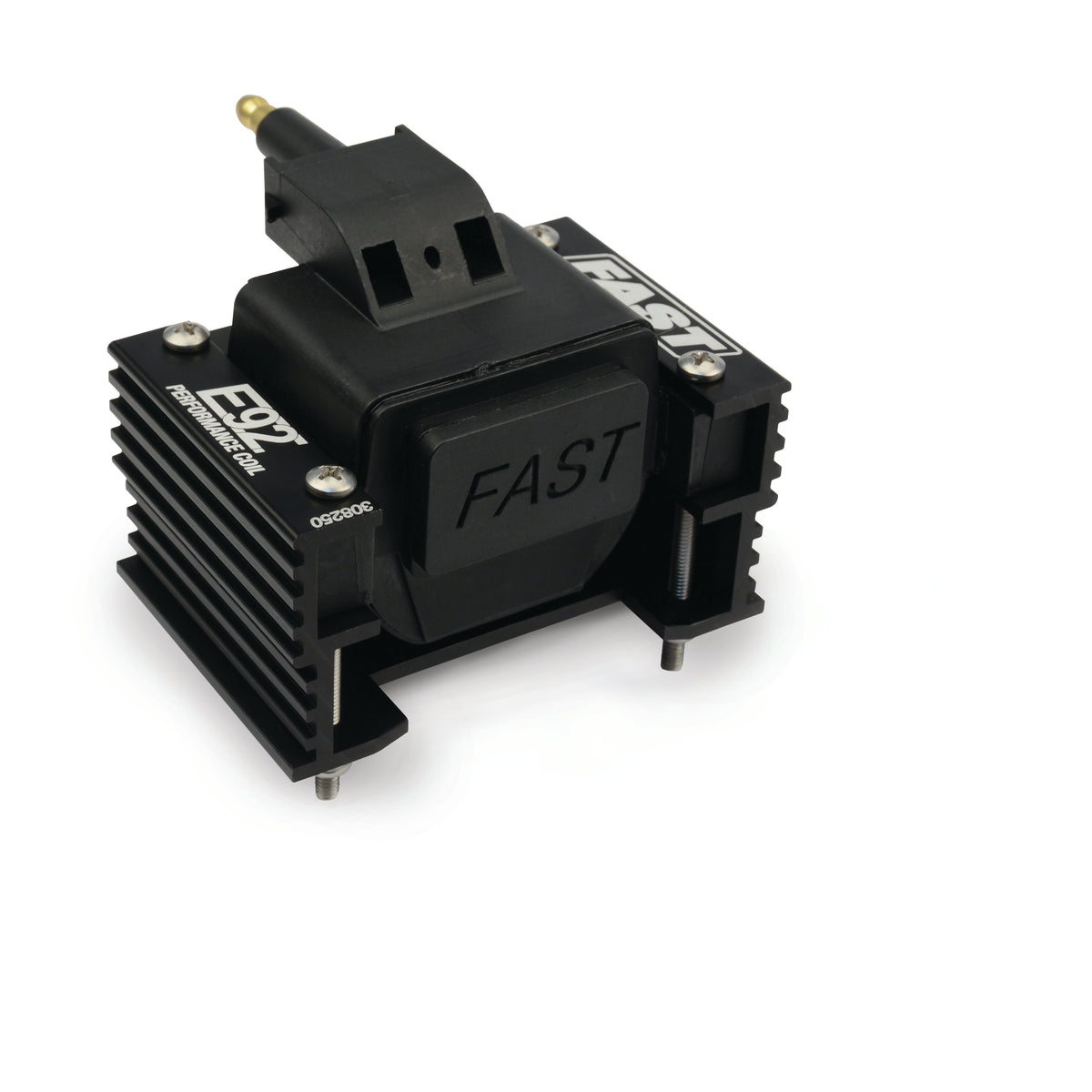

The E92 Coil was designed for high performance street engines running an E6-series Ignition Control. The efficient E-core construction provides a secure housing that can handle the rigors of street and performance use while producing a high output spark. The extruded metal housing provides a durable mount and acts as an effective heat sink as well.

Attributes

GTIN: 00036584286448
Brand Name: FAST
Ballast Resistor Included: No
Mounting Position: Any
Weight: 1.25 lbs
Turns Ratio: 60:1
Terminal Quantity: 2
Spark Duration: 245 uS
Secondary Resistance: 920 ohms
Secondary Inductance: 5.5 H
Quantity: Sold Individually
Primary Resistance: .23 ohms
Primary Inductance: 1.7 mH
Peak Current: 510 mA
Oil Filled: No
Mounting Bracket Included: Yes
Mount Type: Integral
Meets or Exceeds OEM Specs: Yes
Maximum Voltage: 48,500 V
Length: 3.75
Leakage Inductance: .14 mH
Height: 3
Coil Wire Terminal Quantity: 1
Coil Wire Included: No
Coil Wire Attachment: Male/HEI
Coil Style: E-Core
Coil Shape: Square
Coil Internal Construction: Epoxy
Coil Color: Black
Width: 2.5
C.A.R.B. Exempt?: Yes
C.A.R.B. EO Number: D-255-60

Extended Information

Country of Origin: United States
Emissions : Released
Life Cycle Status: Available To Order

Packing Information

Quantity of Each: 1
Package UOM: EA
Dimension: 5.9 x 4.1 x 3.4 inches
Weight: 1.4991 lb
