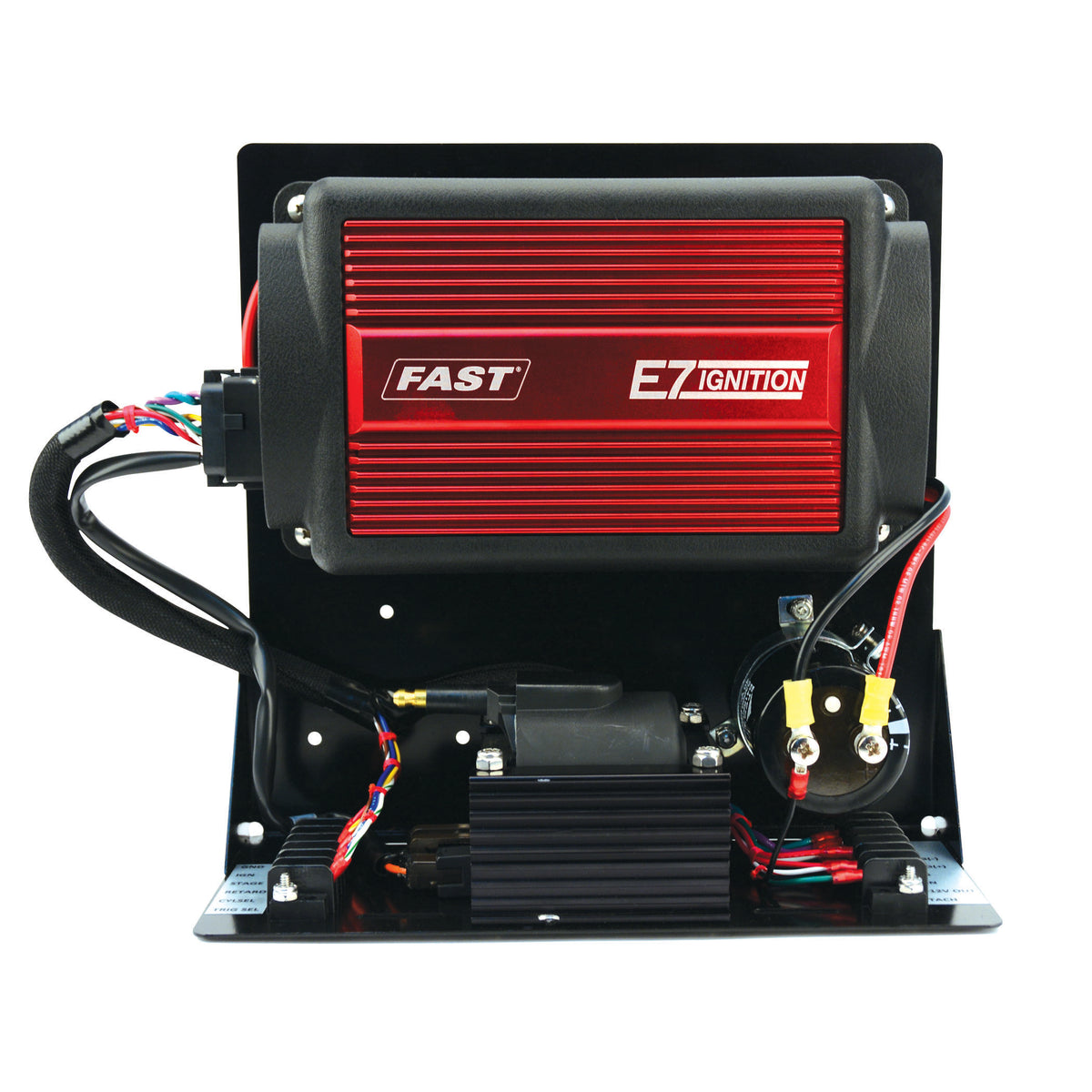

E7 CD Ignition System with E93 Coil and Mounting Kit
E7 CD Ignition System with E93 Coil and Mounting Kit
Regular price
$0.00 USD
Regular price
$0.00 USD
Sale price
$0.00 USD
Unit price
per
Couldn't load pickup availability
When it comes to high compression, screaming RPM and power adders, the E7 Ignition Control is up to the task. The CD technology of the E7 delivers high output fire power, up to 160mJ of energy, to ignite racing fuel under the toughest combustion chambers! The high voltage sparks of the E7 are managed by an efficient digital controller coupled with an efficient transformer and capacitor. When the ignition is at idle speeds, there is a series of multi-strikes that help keep your race engine running clear and crisp. For overrev protection, the E7 features an adjustable rev limiter along with a second limiter that can be set while staged and waiting for the green light. Both limits are accurately set with positive feeling detent switches. You?ll also notice that the advanced sequential limiter produces a smooth, bang-and-pop free rev limiting action ? easy on your engine and ears. Another useful feature of the E7 is a built-in start retard of 20?. This extra retard rate is active only when the engine cranks over which eases pressure on the starter and flywheel. Once the engine reaches 600 RPM, the timing returns to the mechanical, set amount.
- 6V-18V, Reverse Polarity Protected, Negative Ground Only
- RPM Rev Limiter 600 to 9000 RPM in 100 RPM Increments. Primary Energy Output is 1200mJ/Sequence
Attributes
Attributes
- GTIN: 00036584327097
- Brand Name: FAST
- C.A.R.B. Exempt?: No
- C.A.R.B. EO Number: N/A
- Ignition Box Height: 2.2
- Operating Voltage: 10-20
- Current Draw: 1 Amp per 1,000 RPM
- Operating Range: 12,000+
- Limiter Range: 100-12,000
- Limiter RPM Increment: 100
- Limiter Accuracy: 30
- Multi-Strike Duration (Crankshaft Rotation): 20
- Timing Accuracy: 0.5
- Ignition Box Width: 6.3
- Primary Energy Output: 160
- Peak Spark Gap Current: 510
- Software Included?: Yes
- IPU Compatible?: Yes
- Hall-Effect Compatible?: Only compatible with aftermarket crank trigger pickup
- Limiter Type: Sequential
- Primary Voltage Output: 450
- Coil Width: 3.5
- Ignition Box Length: 8.3
- Timing Retard Stages: 1
- Coil Wire Included: No
- Grade Type: Performance
- Instruction Manual Included: Yes
- Maximum RPM: 12000
- Minimum Operating Voltage: 10
- Mounting Hardware Included: Yes
- Rev Limiter Included: Yes
- Trigger Type: Points & Mag
- Coil Height: 3.25
- Maximum Coil Voltage: 50000
- Coil Primary Resistance: 0.2
- Coil Secondary Resistance: 0.82
- Coil Primary Inductance: 1.9
- Coil Leakage Inductance: 6.8
- Coil Turns Ratio: 0.14
- Coil Length: 4.25
- Mounting Tray Included?: Yes
Extended Information
Extended Information
- Country of Origin: United States
- Emissions : Released
- Life Cycle Status: Released
Packing Information
Packing Information
- Quantity of Each: 1
- Package UOM: KT
- Dimension: 19.8 x 8.5 x 4.2 inches
- Weight: 9 lb
