COMP Cams

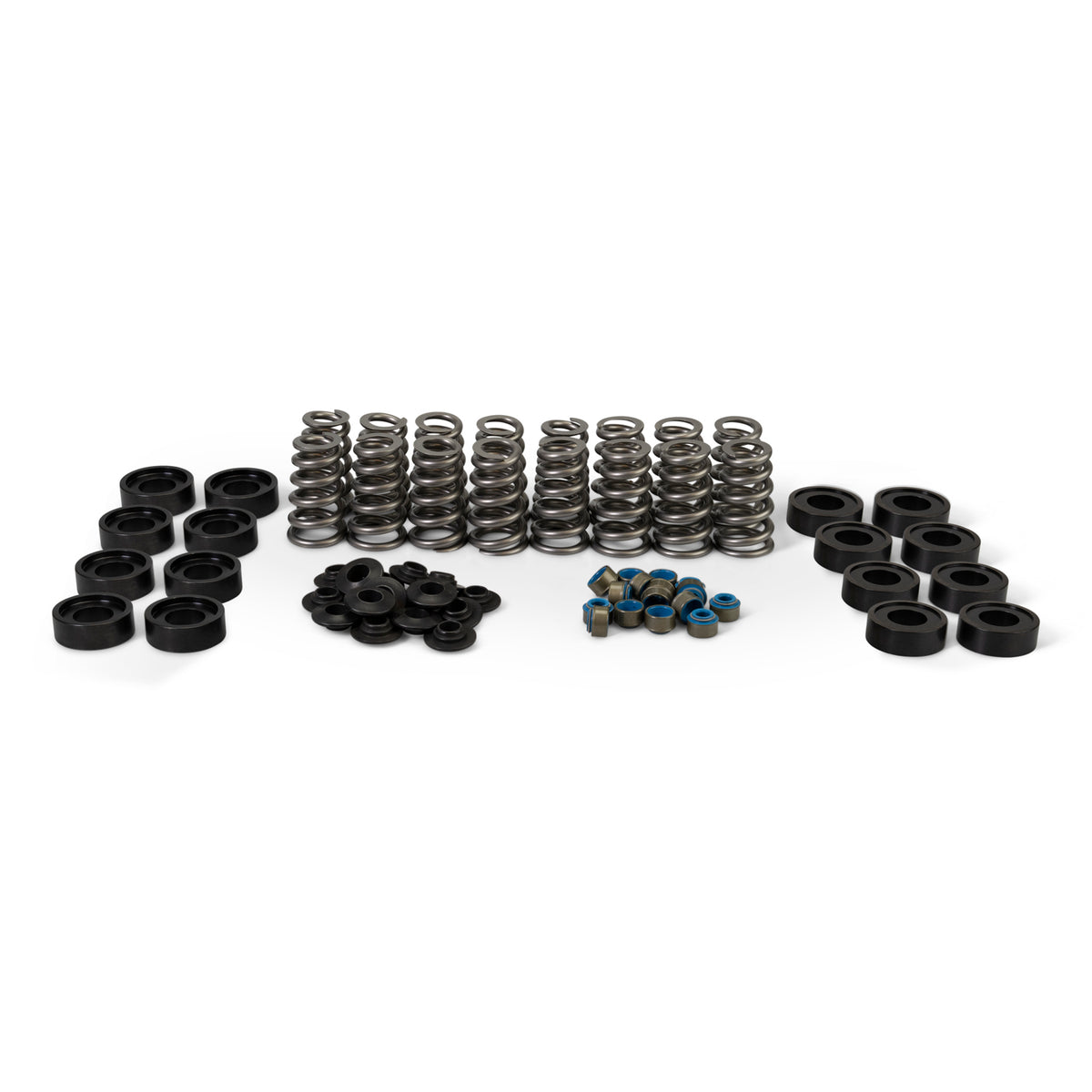

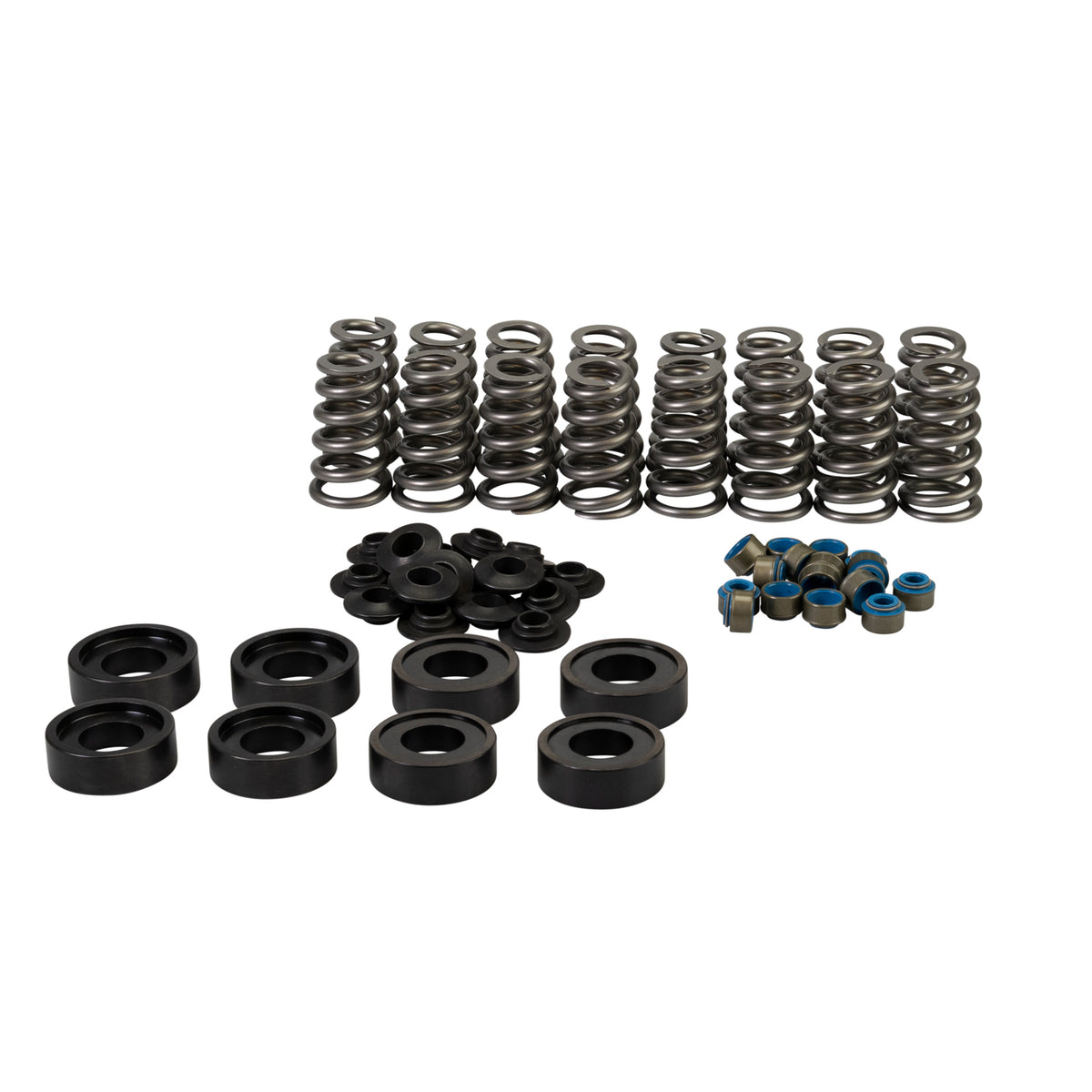

Conical Valve Spring Kit For Ford 7.3L Godzilla Engine

Conical Valve Spring Kit For Ford 7.3L Godzilla Engine

BDQQ-7230GCS-KIT

COMP Cams

$604.95 USD
$604.95 USD $604.95 USD
Sale Sold out
This new Valve Spring Kit for Ford’s 7.3L Godzilla engine utilizes COMP Cams® Conical Valve Springs to provide .675” of valve lift. The conical springs use round wire featuring a diameter and progressive pitch-driven natural frequency. This design increases the valve train RPM while reducing resonance concerns and decreasing dynamic spring oscillations. The result is longer spring life and the ability to run a more aggressive camshaft. It utilizes chromemoly steel retainers and stock valve seals.
  • .675" Valve Lift
  • Conical Valve Springs
  • Brand Name: COMP Cams
  • GTIN: 00036584426875
  • Bottom Inside Diameter of Outer Spring: .932
  • Bottom Outside Diameter of Outer Spring: 1.332
  • Installed Height: 1.900
  • Load at Installed Height: 145
  • Load at Open Height: 496
  • Lock Style: 7
  • Machine Work Required: No
  • Maximum Coil Bind: 1.185
  • Number of Springs Per Valve: 1
  • Open Height: 1.225
  • Quantity: 16
  • Recommended Max Lift: .675
  • Retainer Material: Chromoly Steel
  • Spring Rate: 520
  • Spring Seat OD: 1.650
  • Top Inside Diameter of Outer Spring: .660
  • Top Outside Diameter of Outer Spring: 1.060
  • Valve Spring Finish: Superfinish
  • Valve Spring Style: Conical
  • Valve Stem Diameter: .315
  • Country of Origin: United States
  • Emissions : Emissions Compliance Exempt
  • Quantity of Each: 1
  • Package UOM: ST
  • Dimension: 12 x 3 x 6 inches
  • Weight: 4.15 POUNDS
View full details
